Beomaster 1001
Alle funksjoner i orden.
Vekt | 6 kg |
---|---|
Dimensjoner | 55 × 21 × 8 cm |
Very similar to the Beomaster 1200 but in black, the significant differences between the Beomaster 1200 and Beomaster 1001 was that this was an FM-only receiver which was capable of producing ambiophonics sound through four speakers. It could also give a 2 x 2 stereo speaker arrangement if the user did not wish to hear ‘pseudo’ quadraphonic – or ambiophonics – sound in the same room.
A beautiful-looking machine, as was the Beomaster 1200, but one whose technology was surpassed later with the arrival of Beomaster 3400 which was able to deal with ‘proper’ four-track sound.

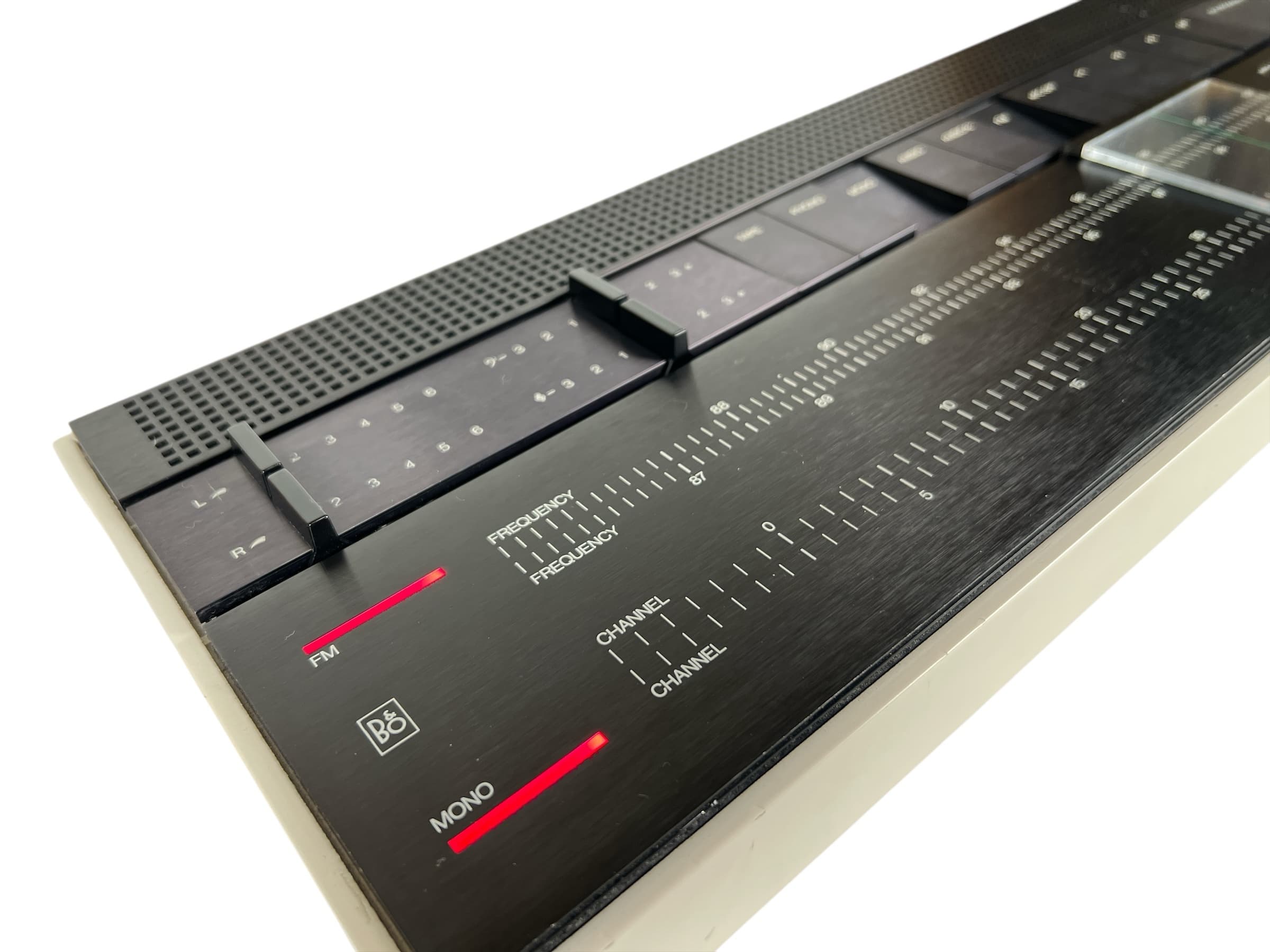

Three favorite radio stations could be preset by push-buttons, and AFC was fitted as standard to lock on and hold on to distant transmitters. The amplifier delivered 2 x 15W with all controls being of Jacob Jensen’s ’slide rule’ type.
Power output: 2 x 15 watts / 4 ohms
2 x 13 watts / 8 ohms
2 x 20 watts / 4 ohms
2 x 15 watts / 8 ohms
Speaker impedance: 4 ohms
Harmonic distortion at output 1000 Hz: < 0.3 %
Intermodulation: < 1.0 %
Frequency Response: 20 – 35,000 Hz
Damping factor: > 11
Signal-to-noise: Pickup low
Tape recorder: > 50 dB
Channel separation: > 50 dB Bass control at 40 Hz:: +/- 17 dB
Treble control at 12,500 Hz: +/- 14 dB FM tuner: Range 87.5 – 104 MHz
Sensitivity: < 1.8 µV at 75 ohms
Harmonic distortion: < 0.9 %
Stereo channel separation: > 30 dB
Pilot and Carrier: > 35 dB
Suppression: > 35 dB
Power supply: 110 – 130 – 220 – 240 V,50 – 60 Hz
Power consumption:15 – 120 W
Dimensions W x H x D: 55 x 8 x 21cm
Weight: 6 kg

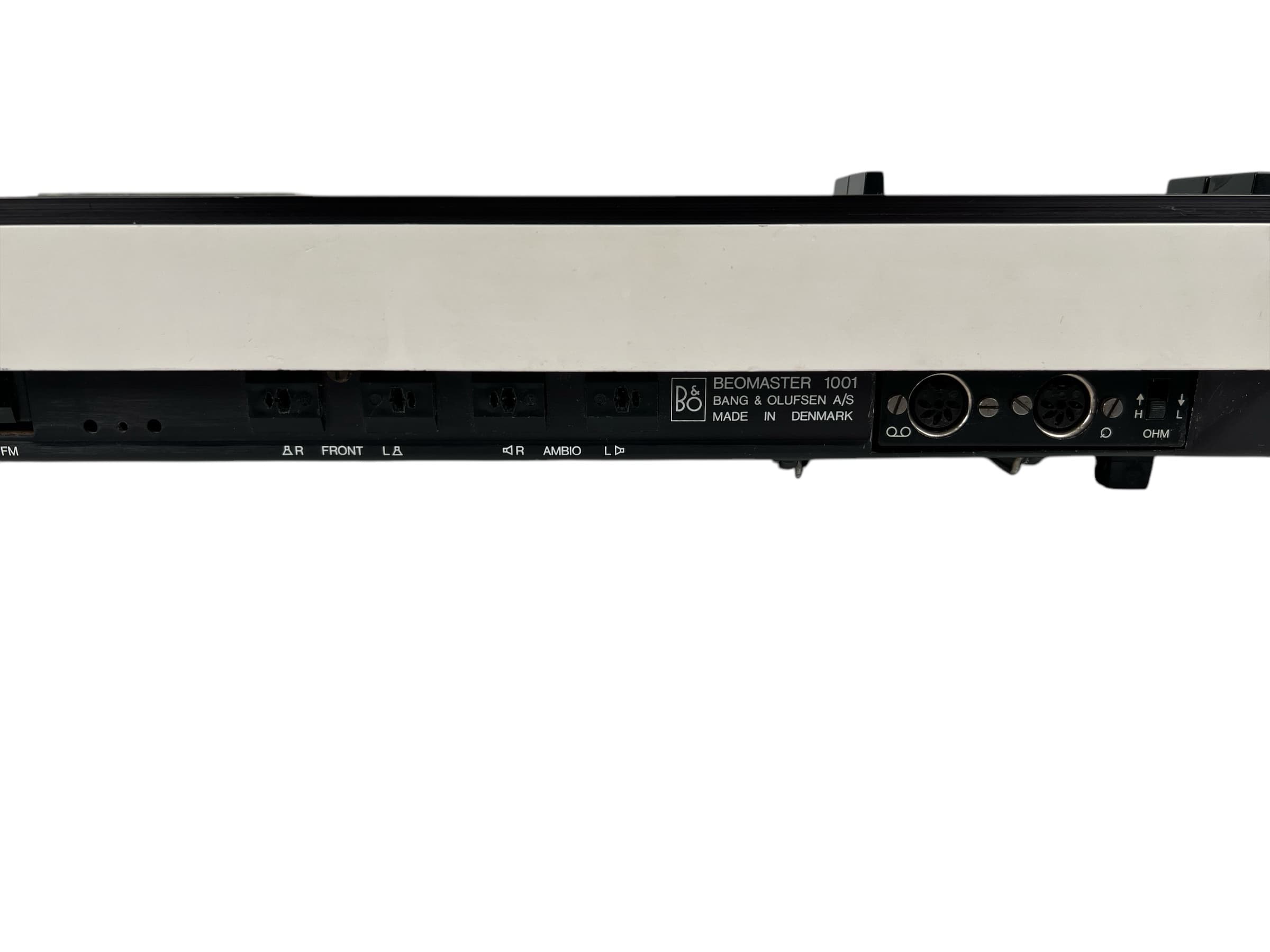

Connections: Headphones Max 8 V / 100 ohms
Tape DIN
Phono DIN
Speakers 2 sets
Aerial FM 75 ohms
Vekt | 6 kg |
---|---|
Dimensjoner | 55 × 21 × 8 cm |
