EQ-875R

Color Palette

Pris

520 ,-

+MVA(25%)

130 ,-

Totalt

650 ,-

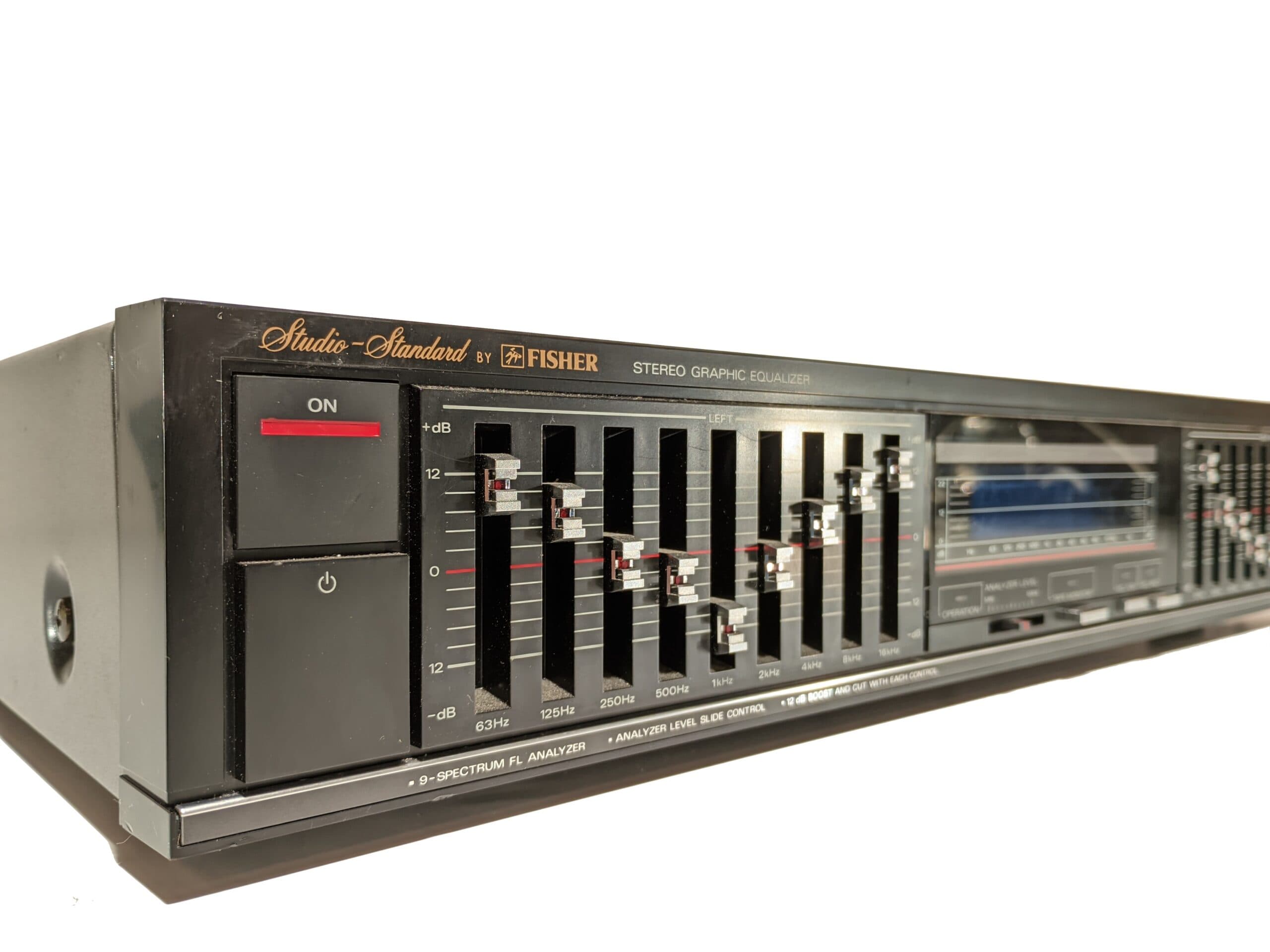

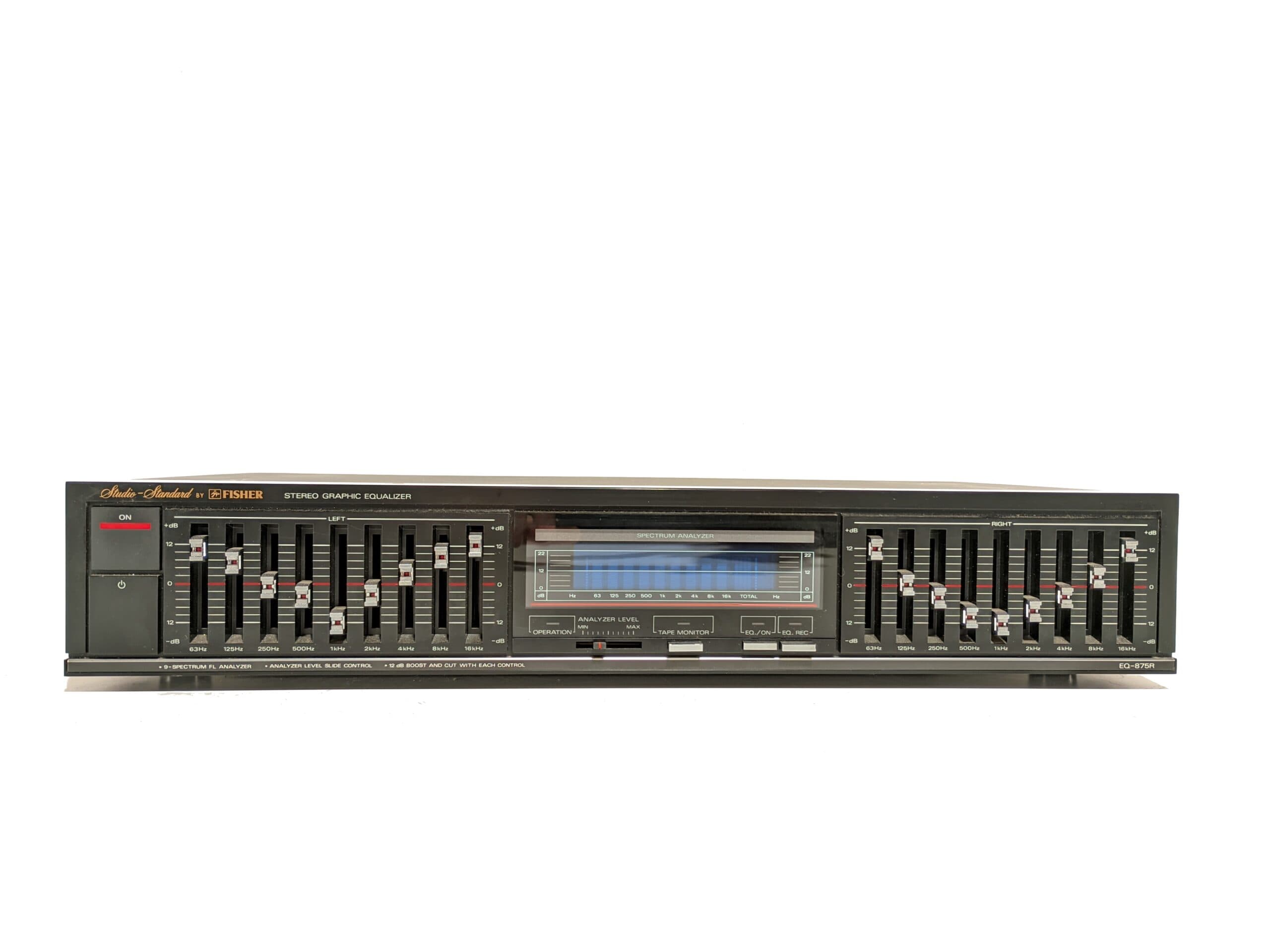

  • Model: EQ-875 R (component of the Fisher System 8760 )
  • Type: Equalizer
  • Years of construction: 1987 – 1988
  • Made in: Japan
  • Color: Black
  • Remote Control: Yes (via Fisher CA-876 )
  • Power consumption: 15W
  • Dimensions (WxHxD): 440 x 83 x 262 mm
  • Weight: 3.7kg
  • Inputs (sensitivities and impedances):
    • Line: 1000 mV / 50 kOhm
    • Tape: 1000 mV / 50 kOhm
  • Number of outputs: 1
    • REC OUT
    • PB
    • Line OUT: 1000 mV / 2 kOhm
  • THD (at nominal output voltage): 0.01%
  • Intermodulation (nominal output voltage): 0.02%
  • Frequency response (with all adjusters in the middle position): 20 – 20,000 Hz (+0/-0.5 dB)
  • Sound setting variation range: +/- 12 dB
  • Number of frequency bands: 2 x 9
  • Center frequencies of the bands: 63 Hz, 125 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz, 16 kHz
  • Crosstalk attenuation: (1000 Hz): 75 dB
  • External voltage distance (DIN) based on 1000mV output voltage: 110 dB
  • Spectrum analyzer corresponding to the adjustable frequency bands with the total amplitude of the entire spectrum
  • Adjustable level deflection of the display
  • Tape monitor circuit for cassette recordings via the equalizer
