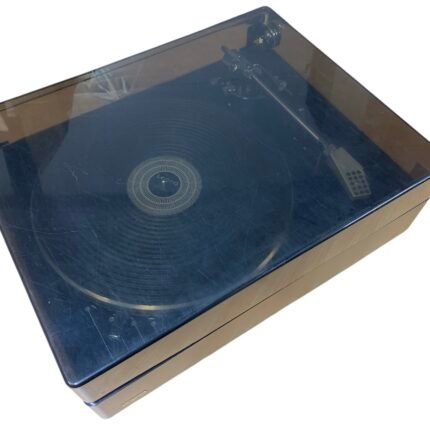

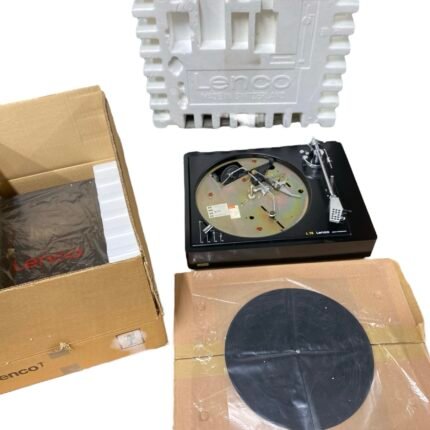

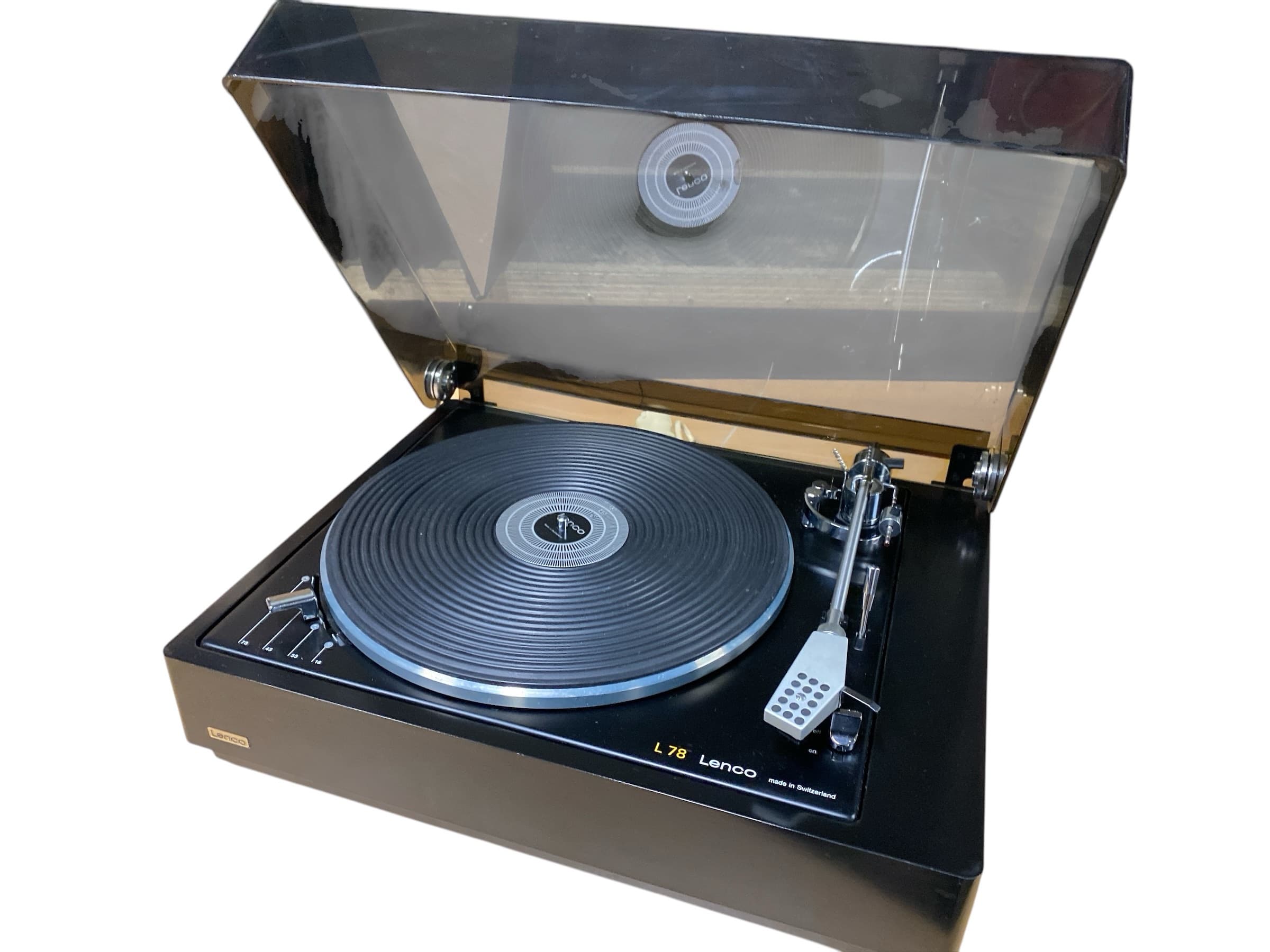

Lenco L78

Beskrivelse

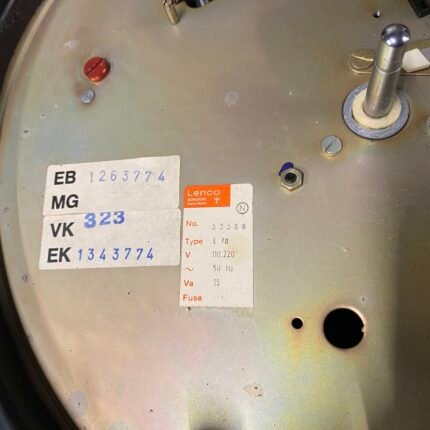

• Model: L 78
• Years of manufacture: 1974 – 1976
• Made in: Switzerland
• Power consumption: 15 W
• Dimensions: 465 x 165 x 360 mm (WxHxD)
• Weight: 8,5 kg

• Drive: Belt drive
• Motor: 4-pole synchronous
• Speed: 16, 33 ⅓, 45, 78 rpm, additionally infinitely variable from 16 – 78 rpm.
• Synchronous speed fluctuation: 0.06% WRMS.
• Rumble noise ratio: 60 dB
• Turntable: Injection moulded aluminium
  • Diameter: 312 mm
  • Weight: 4 kg
• Operating mode: Semi-automatic with limit switch
• Fine speed control:
• Run-up time:

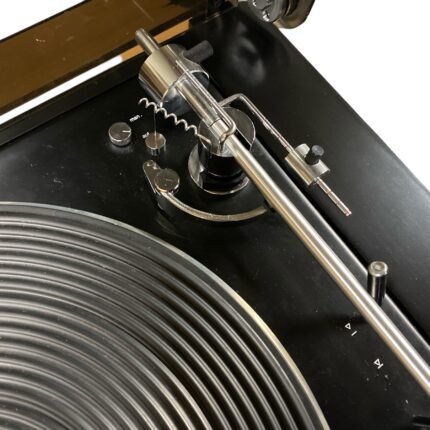

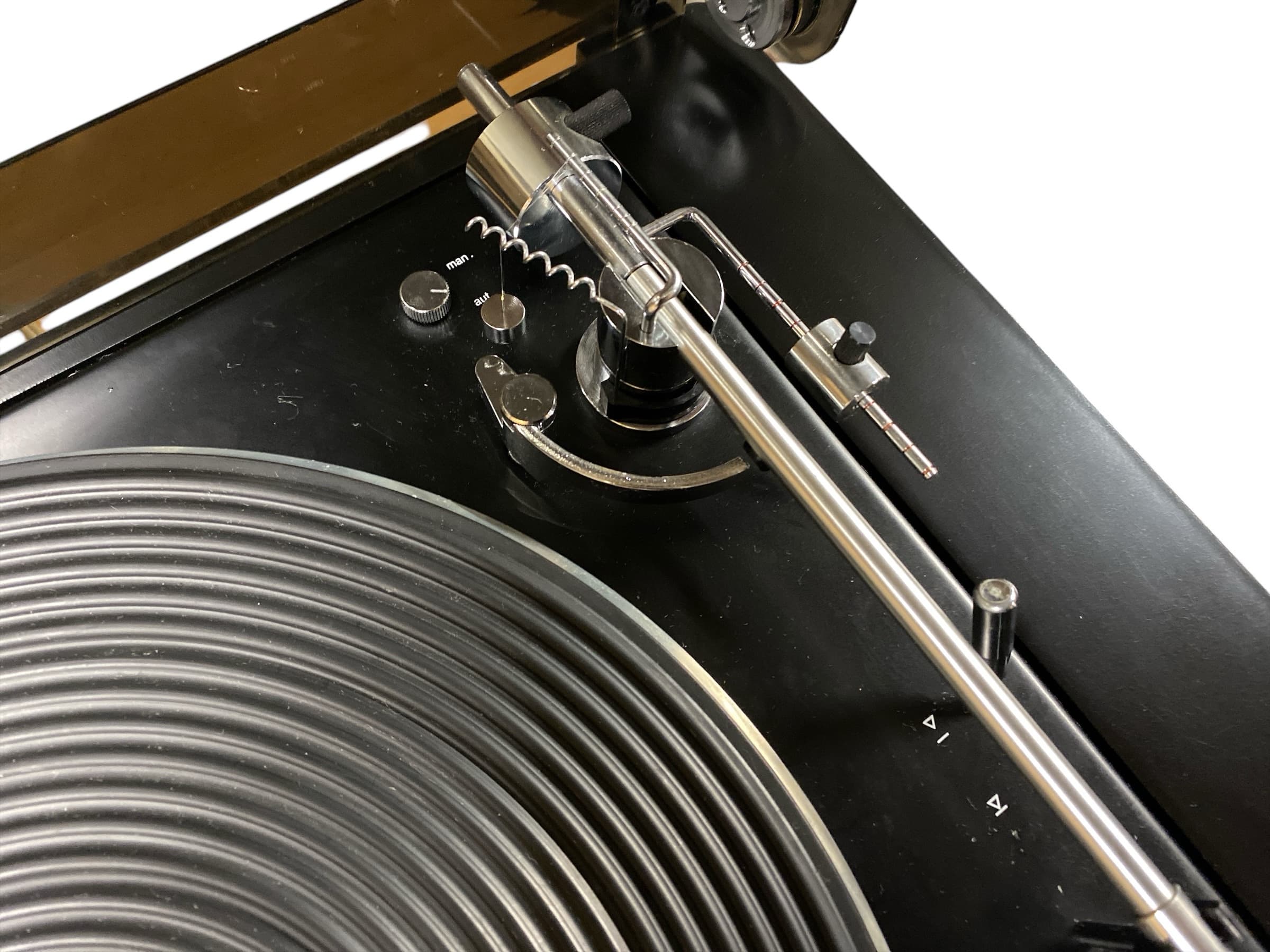

• Tonearm: Straight tubular tonearm, statically balanced.
  • Effective length: 314 mm
  • Overhang: 17 mm
  • Tracking misalignment angle: ± 1.8
  • Angle of attachment head: 23° 12′
  • Contact pressure adjustment range: 0.5 – 4 g

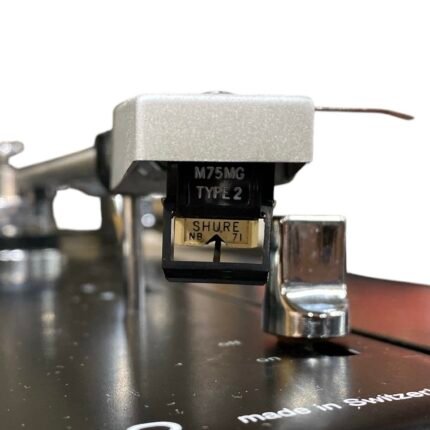

  • Weight of the pickup: 5.5 – 12 g
