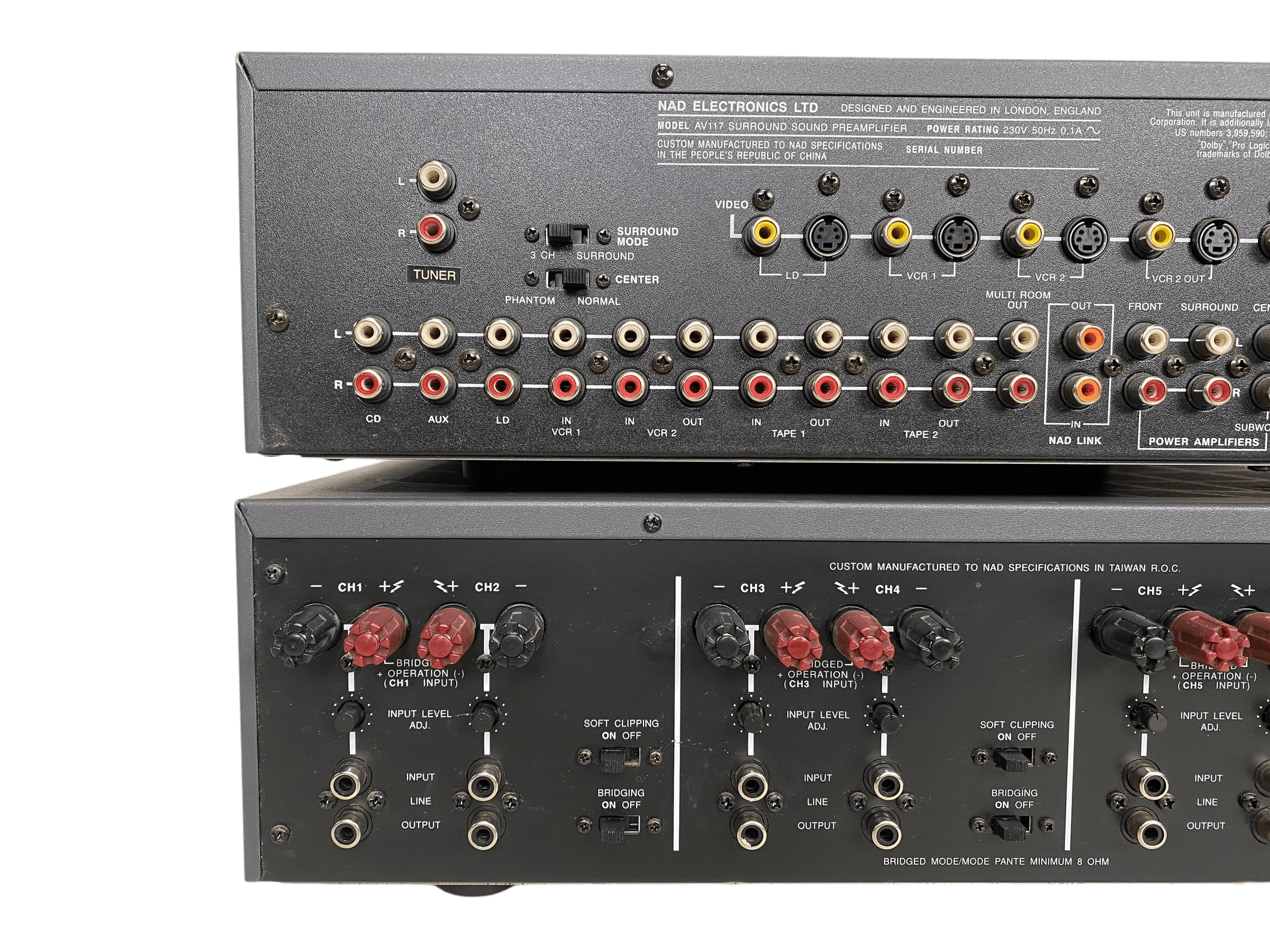

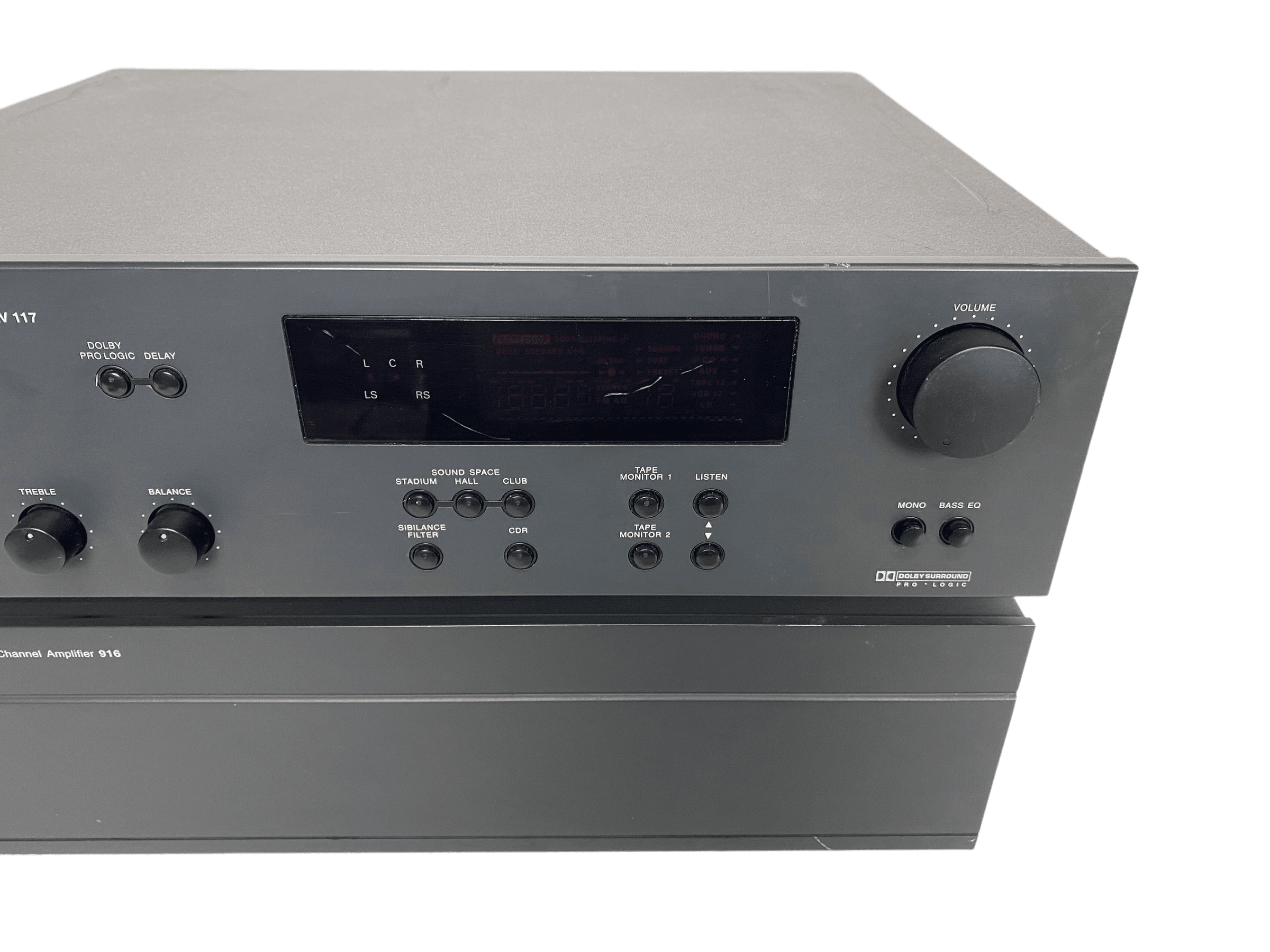

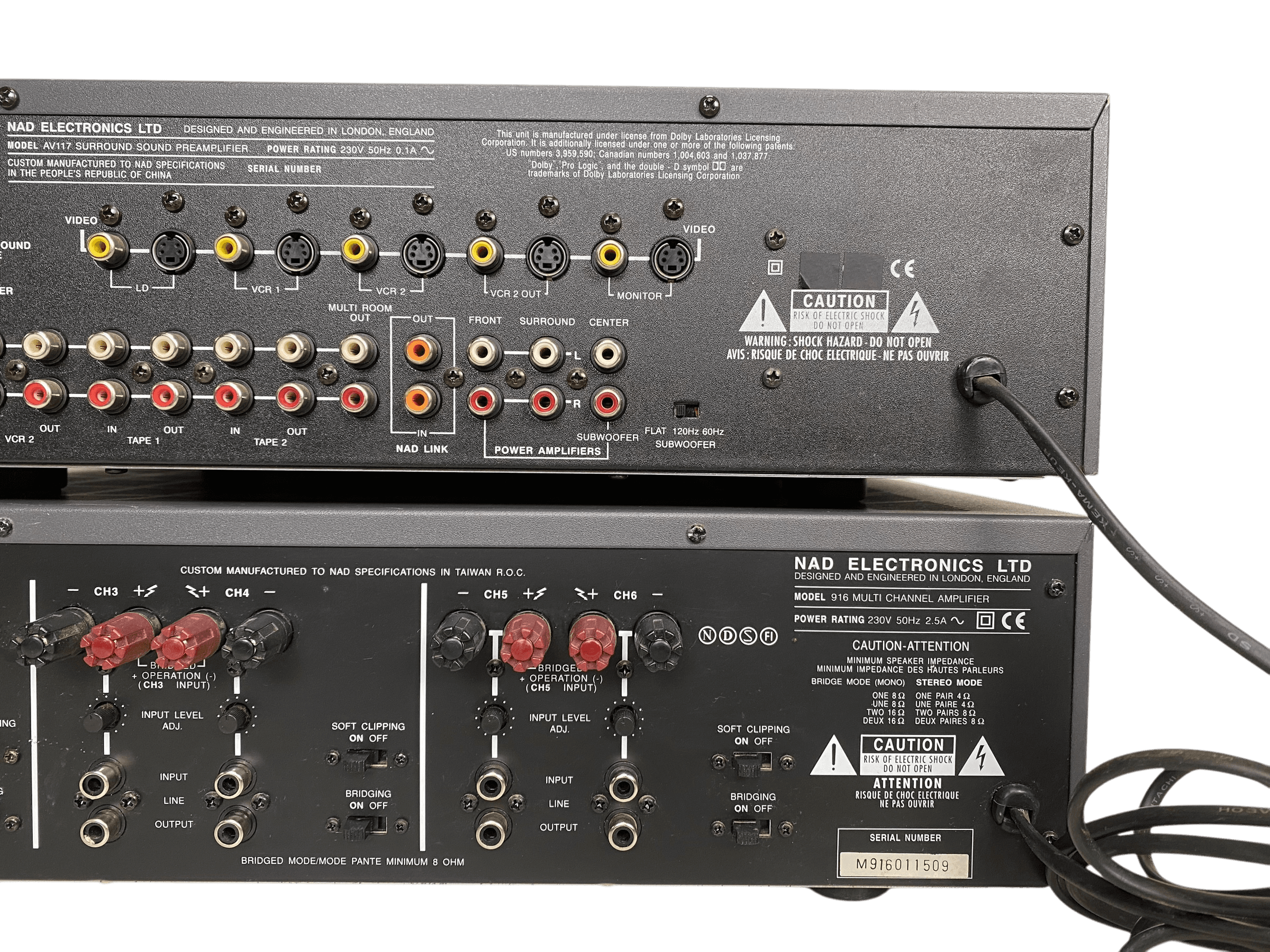

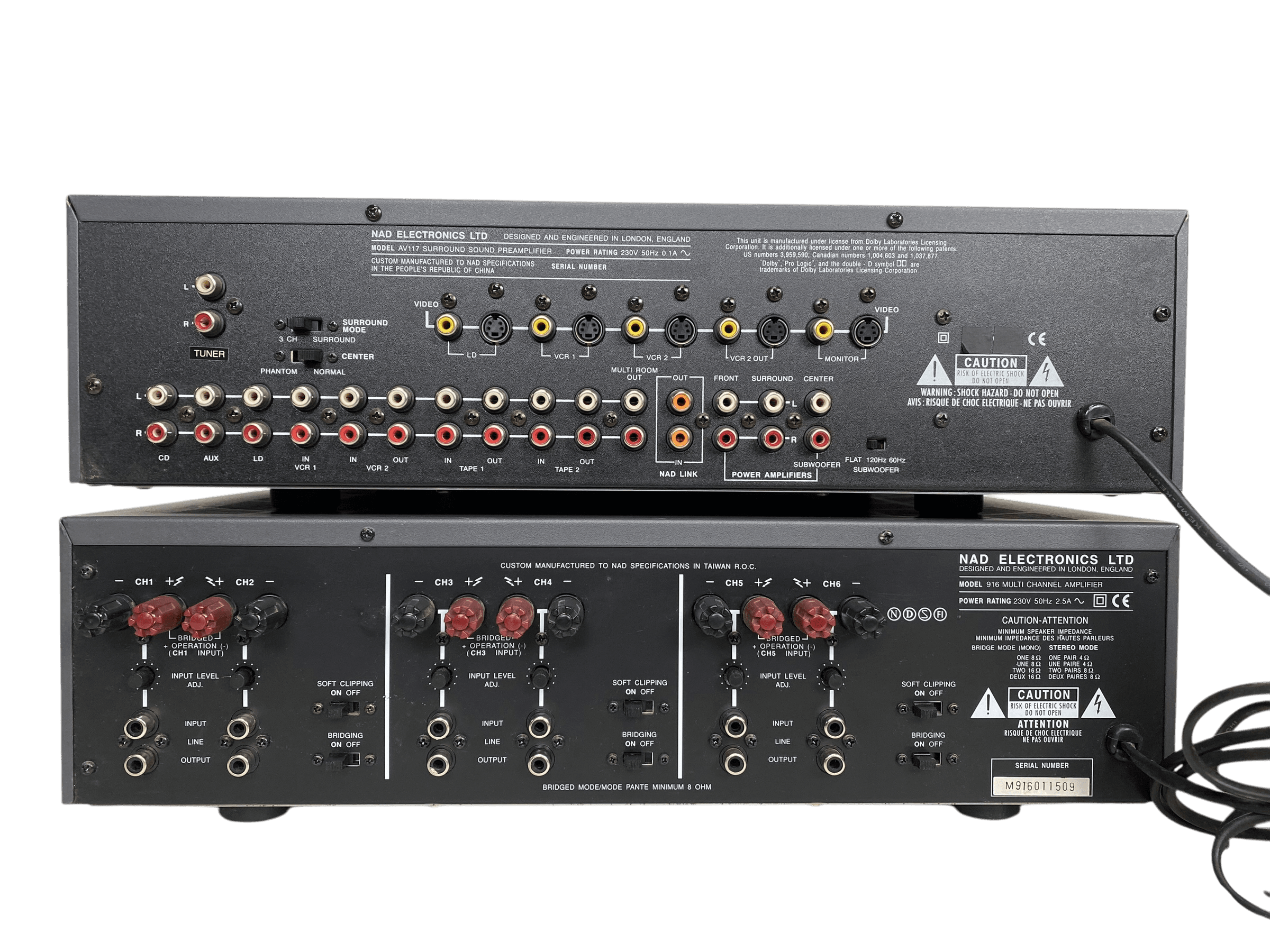

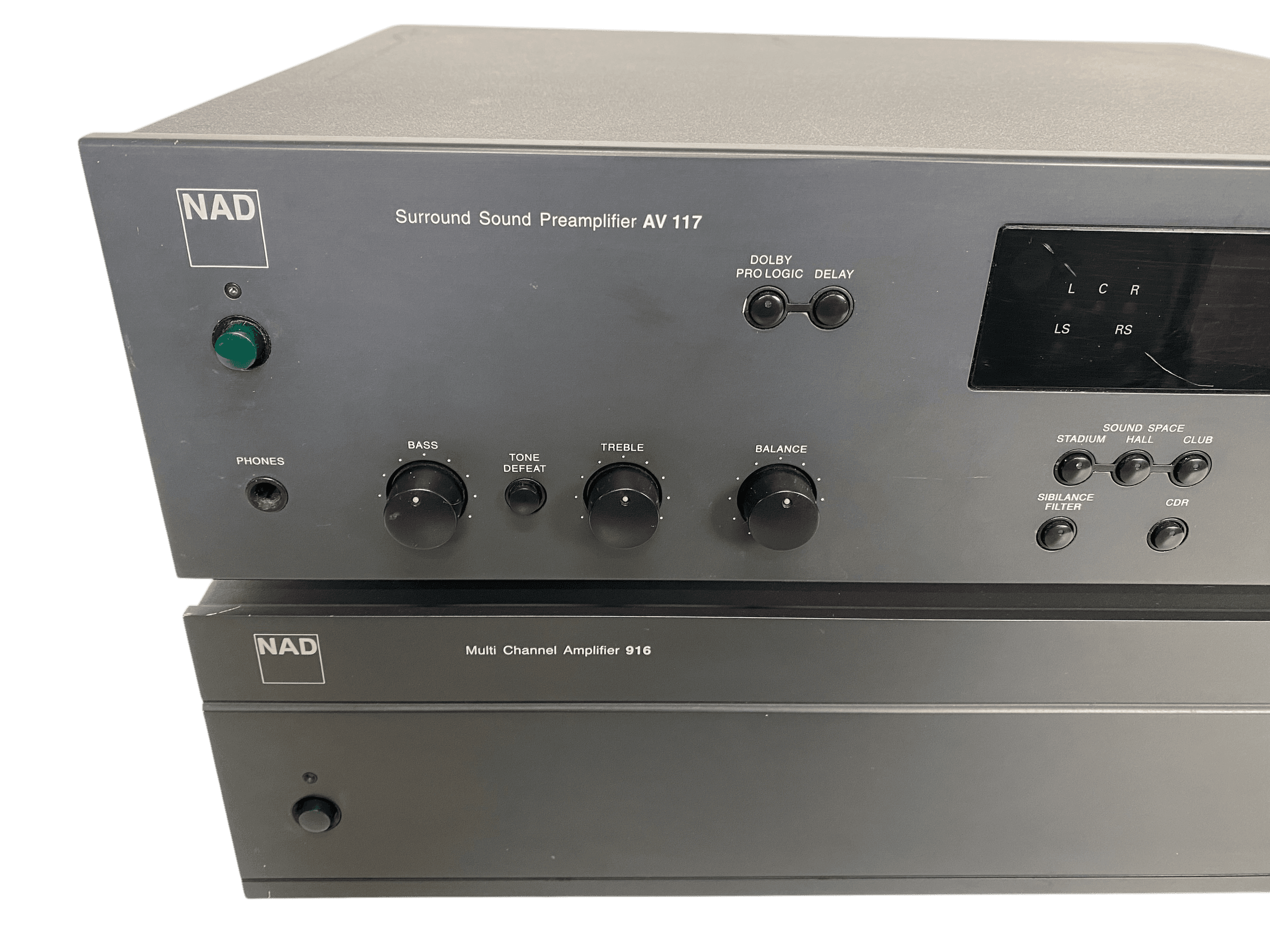

NAD 916 + AV 117

NAD AV 117

• Frequency response: 20Hz to 20kHz
• Total harmonic distortion: 0.4%
• Input sensitivity: 500mV (line)
• Signal to noise ratio: 80dB (line)
• Video Connections: composite
• Dimensions: 435 x 115 x 350mm
• Weight: 6.7kg

NAD 916

• Power output: 30 watts per channel into 8Ω (6 channels)
• Frequency response: 2Hz to 100kHz
• Total harmonic distortion: 0.05%
• Gain: 23.8 dB
• Signal to noise ratio: 110dB
• Dimensions: 435 x 118 x 375mm
• Weight: 13.1kg
• Year: 1995

The 916 will deliver 30 watts into six channels, or 1 x 90 watts plus 4 x 30 watts for five channels, 2 x 90 watts plus 2 x 30 watts for four channels, or more simply 3 x 90 watts for three channels. (Use the latter three channel configuration with a 912 for truly dynamic home cinema sound). Configuration of the 916 is so variable that you will be able to plan exactly the home cinema, multi-room, or of course stereo hi fi system that best suits your needs.
