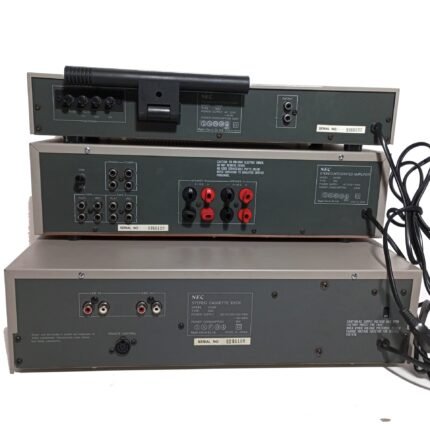

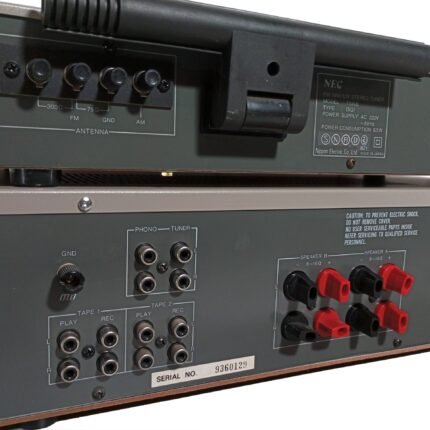

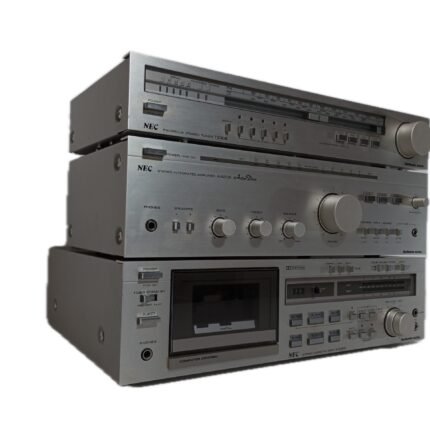

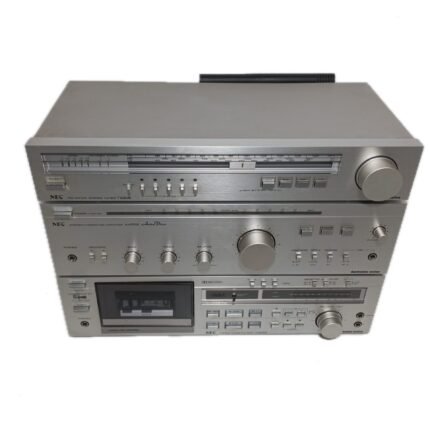

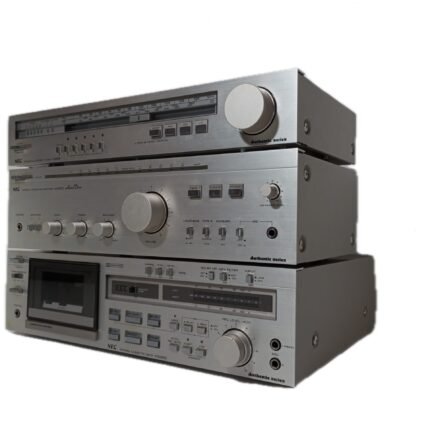

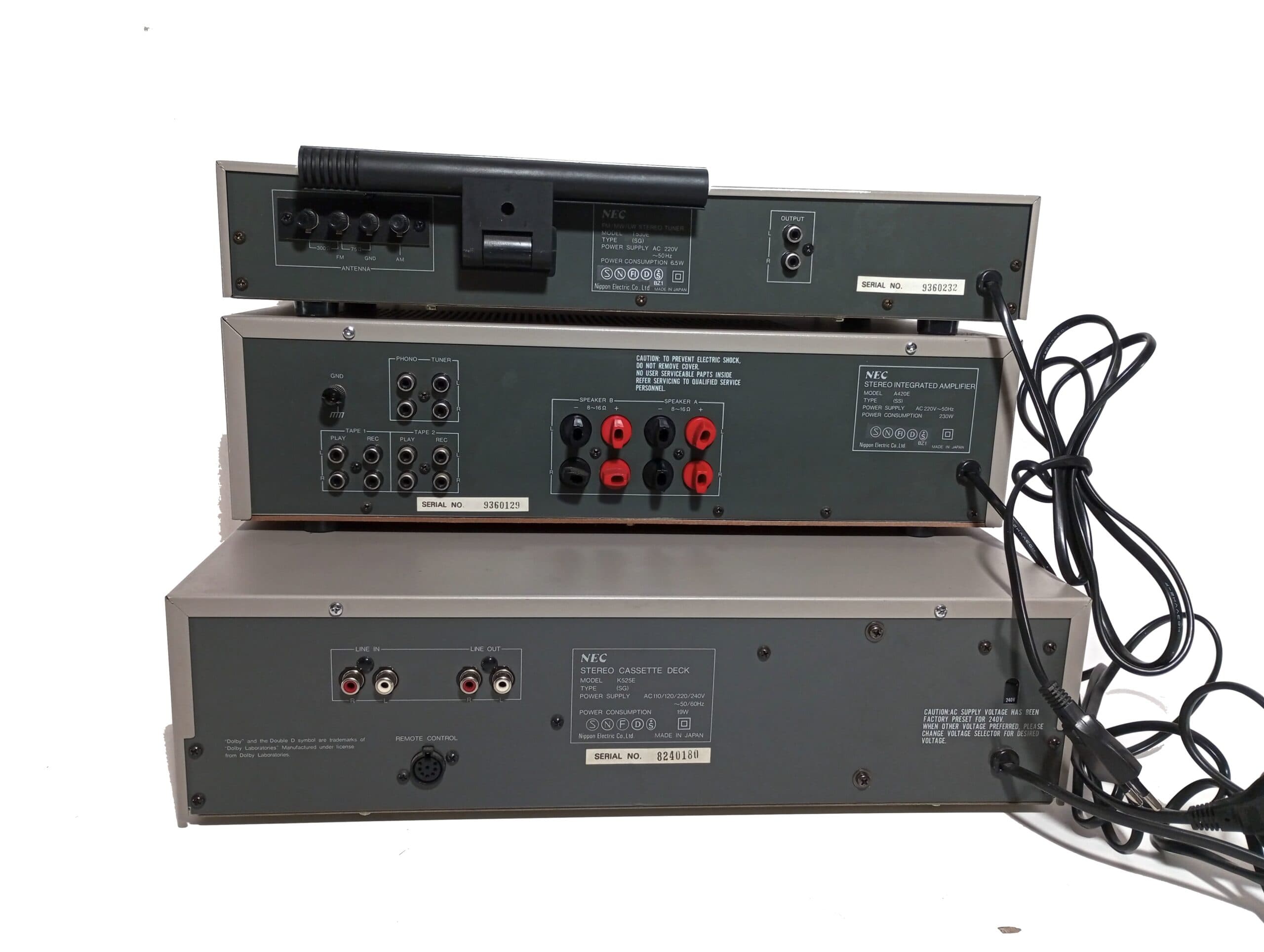

Nec Authentic Series set

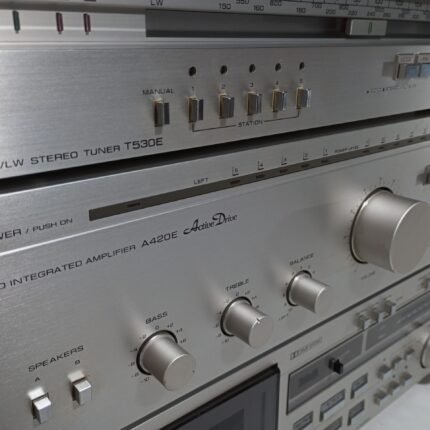

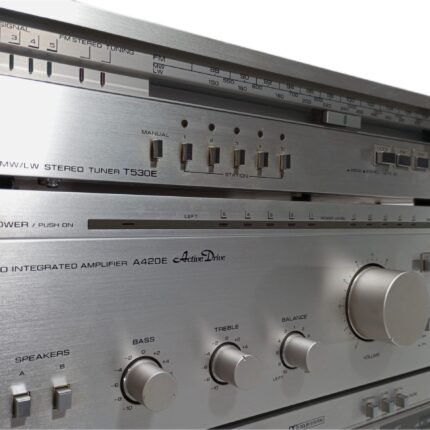

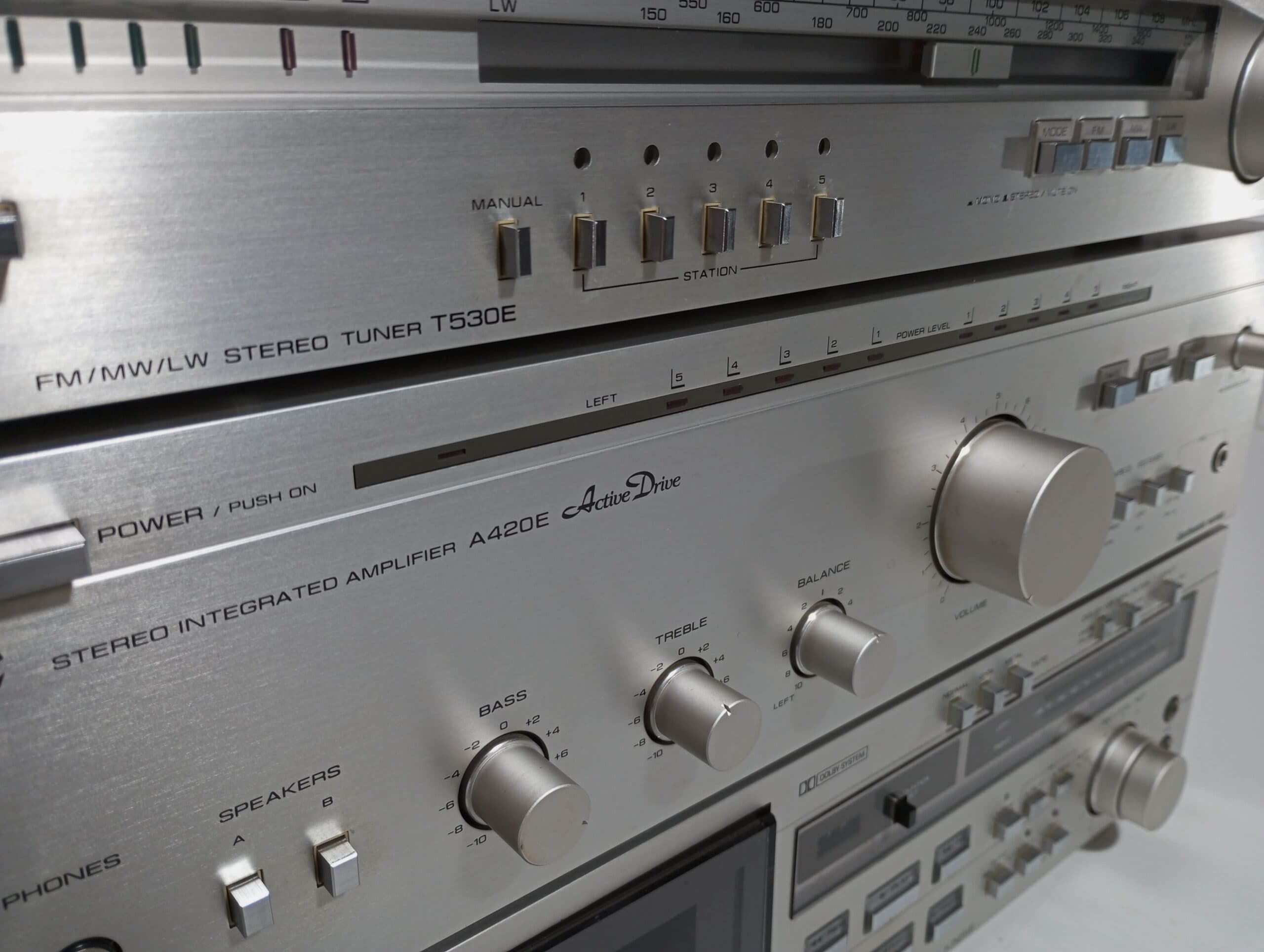

A420E

• Power output: 25 watts per channel into 8Ω (stereo)
• Frequency response: 10Hz to 50kHz
• Total harmonic distortion: 0.05%
• Input sensitivity: 1.6mV (mic), 2.5mV (MM), 150mV (line)
• Signal to noise ratio: 75dB (MM), 100dB (line)
• Output: 140mV (line)
• Speaker load impedance: 8Ω to 16Ω

T530E

Fm/Mw/Lw

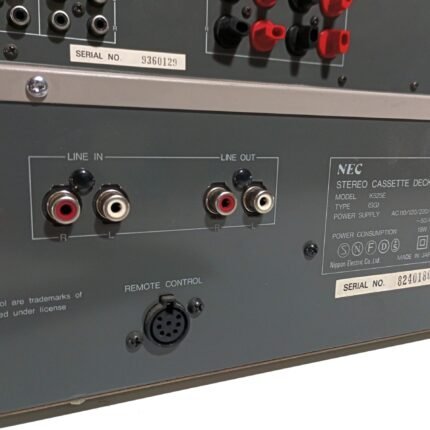

K525E

The main features of the NEC K-525E are: 2 heads, mechanical 3 digit tape counter and memory stop, manual tape type selection and capable of handling normal, chrome and metal tapes, belt driven single-capstan transport.

Typical front loading cassette deck with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the K-525E are generic digital peak reading meters. Full-logic transport controls used on the K-525E let it respond to the slightest finger contact for fast and effortless transport function selection.
