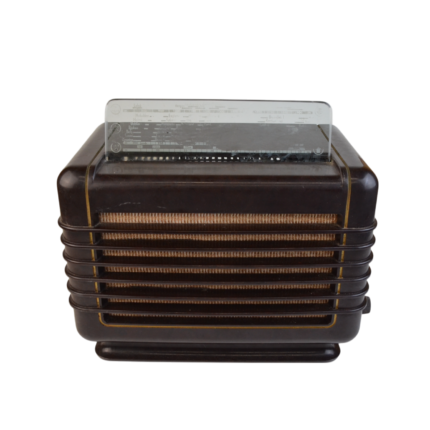

Philips Philetta 209U

Beskrivelse

General Information

• Model: 209U-02
• Manufacturer: Philips, Eindhoven (Tubes)

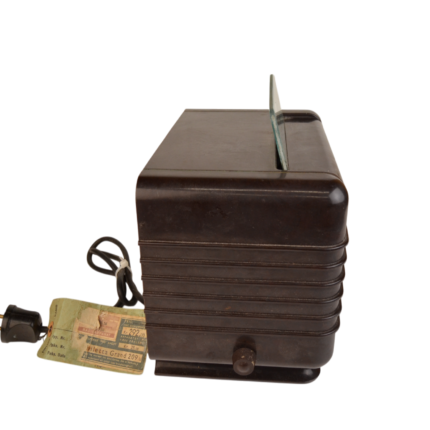

• Shape: Table model without push buttons (Mantel/Midget/Compact, up to 14 inches)
• Material: Bakelite case
• Dimensions (W x H x D): 285 x 185 x 155 mm (11.2 x 7.3 x 6.1 inches)
• Net Weight: 3.3 kg (7 lb 4.3 oz)
• Price in First Year of Sale: 143.00 Hfl (Dutch Florins)
• Year: Not specified (refer to Radiomuseum.org for details)

Technical Specifications

• Main Principle: Superheterodyne (common)
• Intermediate Frequency (IF): 452 kHz
• Tuned Circuits: 6 AM circuits
• Wave Bands:
  • Broadcast (MW)
  • Long Wave (LW)
  • Short Wave (SW)

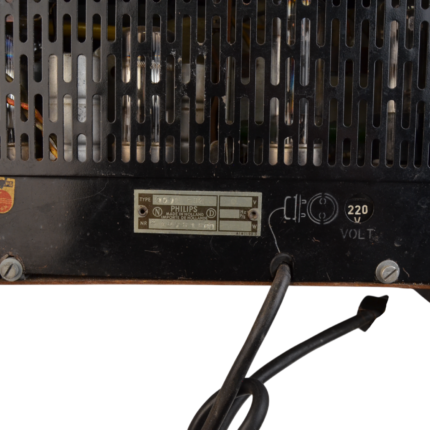

• Power Type and Voltage: AC/DC set, 125/220 V
  • Note: After short-circuiting resistor R37, the model can operate on 110/200 V (AC/DC).
• Loudspeaker: Permanent Magnet Dynamic (PDyn) Moving Coil
  • Diameter: 5 inches (12.7 cm)
