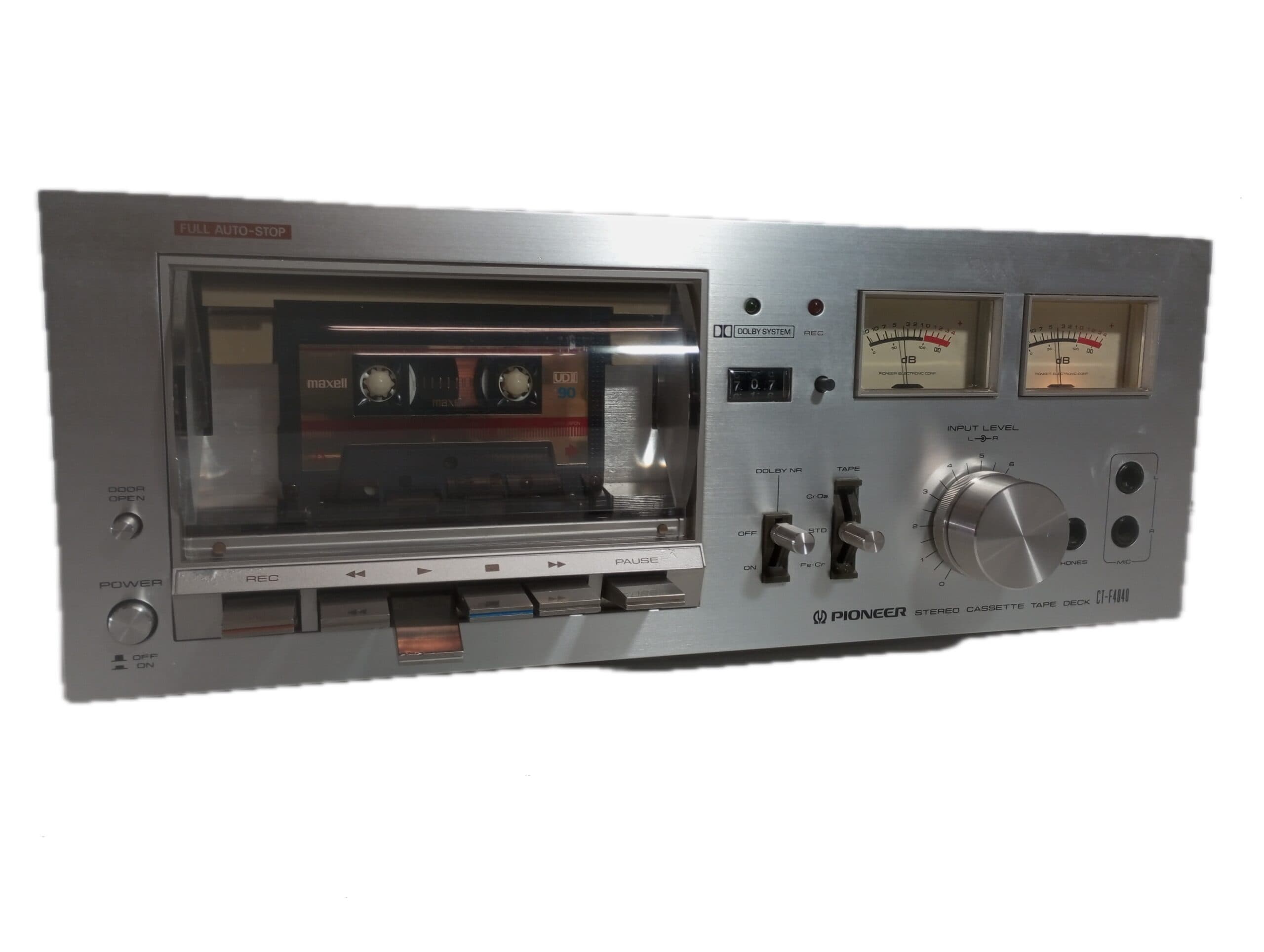

Pioneer CT-F4040

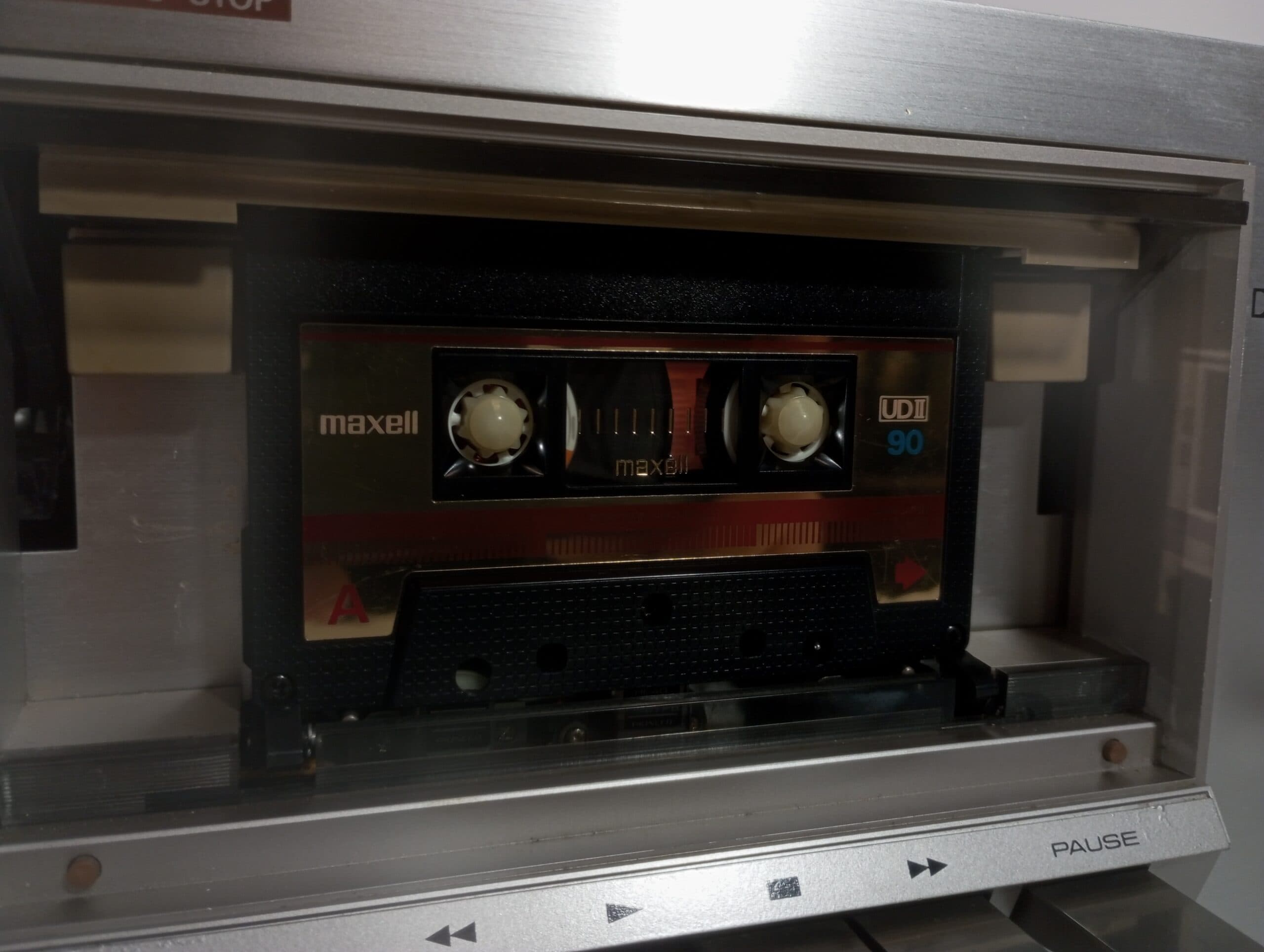

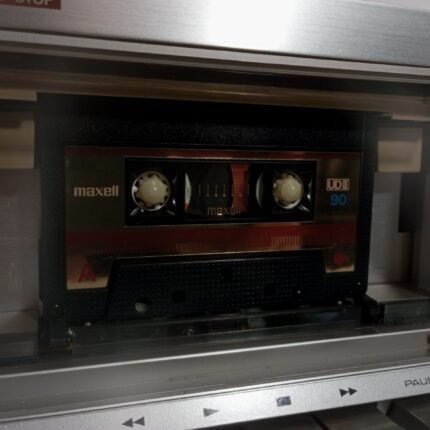

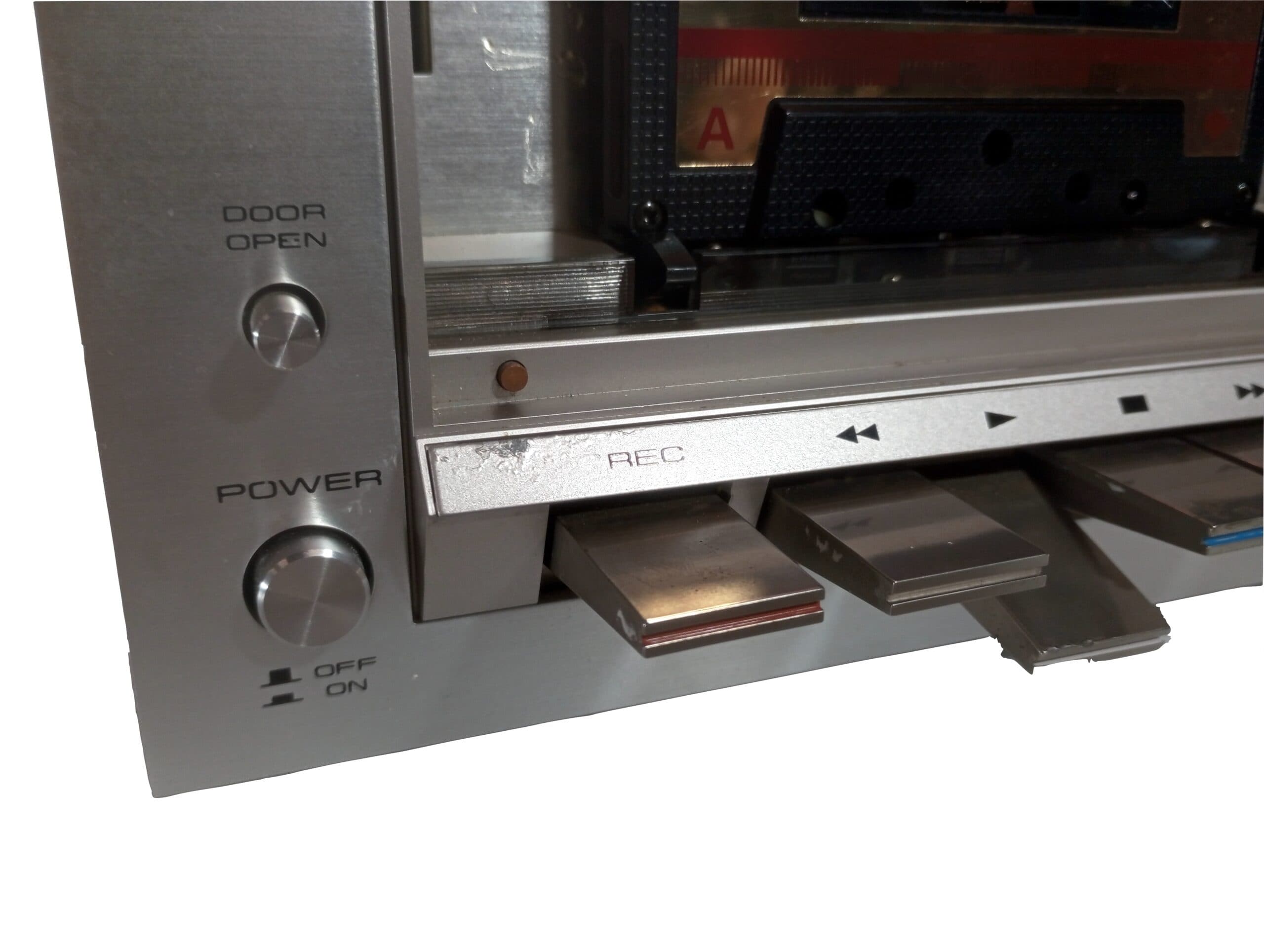

The Pioneer CT-F4040 is a full auto stop, stereo cassette deck with unique vertical cassette holder and oil-damped, sliding compartment door. The compartment is illuminated for easy view of the cassette at all times and features a special marker line to warn of tape end.

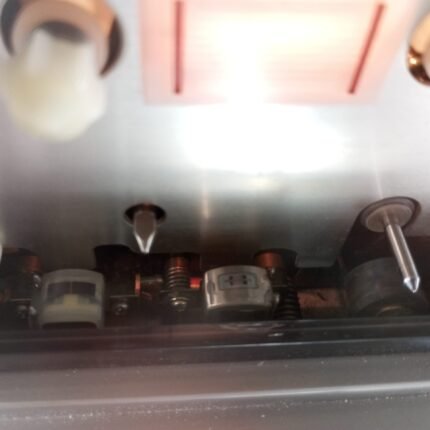

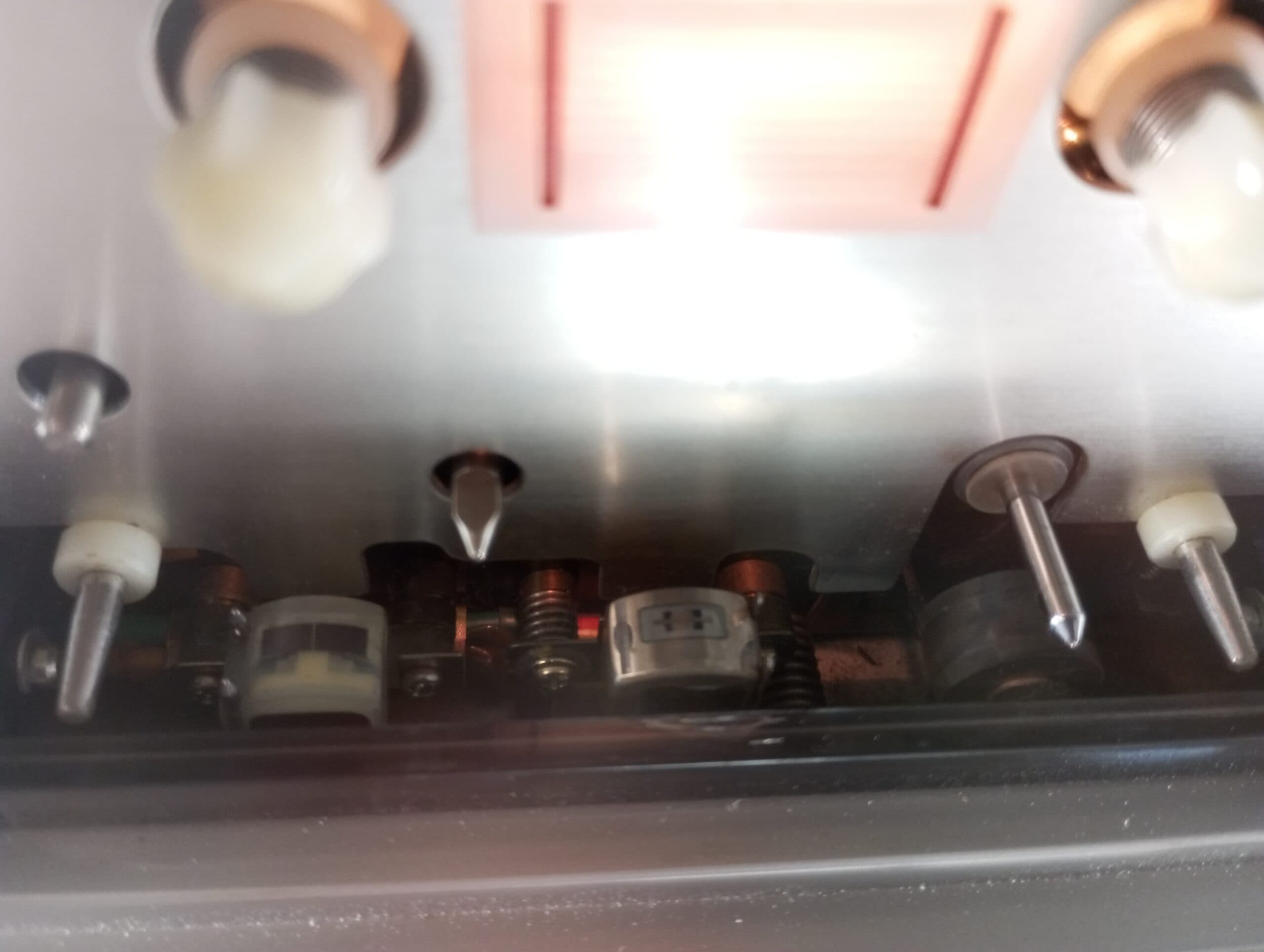

Other features include an electronically controlled DC servomotor and electronic muting for silent mode change, hard Permalloy solid recording/playback head, Ferrite erase head, tape selector, switch for standard LH tape, Cr02 and Ferrichrome, and a Dolby indicator light.

Specifications

Type: 2-head, single compact cassette deck

Track System: 4-track, 2-channel stereo

Tape Speed: 4.75 cm/s

Heads: 1 x record/playback, 1 x erase

Motor: electronically controlled DC

Tape Type: type I, FeCr, CrO2

Noise Reduction: B

Frequency Response: 40Hz to 15kHz  (Cr02 tape)

Signal to Noise Ratio: 62dB  (dolby B)

Wow and Flutter: 0.08%

Input: 60mV (line), 0.2mV (mic)

Output: 0.45V (line)

Dimensions: 380 x 150 x 316mm

Weight: 7.2kg

Year: 1978
