Roland 405

RATED POWER OUTPUT:
GC-405: 20W / 8 ohm
GC-405X: 25W / 4 ohm
(When the speaker box is connected.)

NOMINAL INPUT LEVEL:
Clean Channel: – 35 dBm / 680 k ohm
Lead Channel: – 72 dBm / 680 k ohm
0 dBm = 0.775 Vrms

SPEAKERS:
12 cm (5 inches) x 4

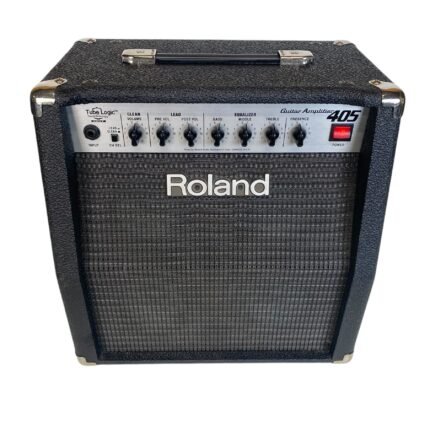

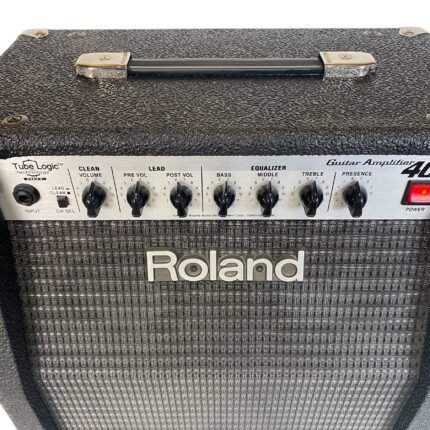

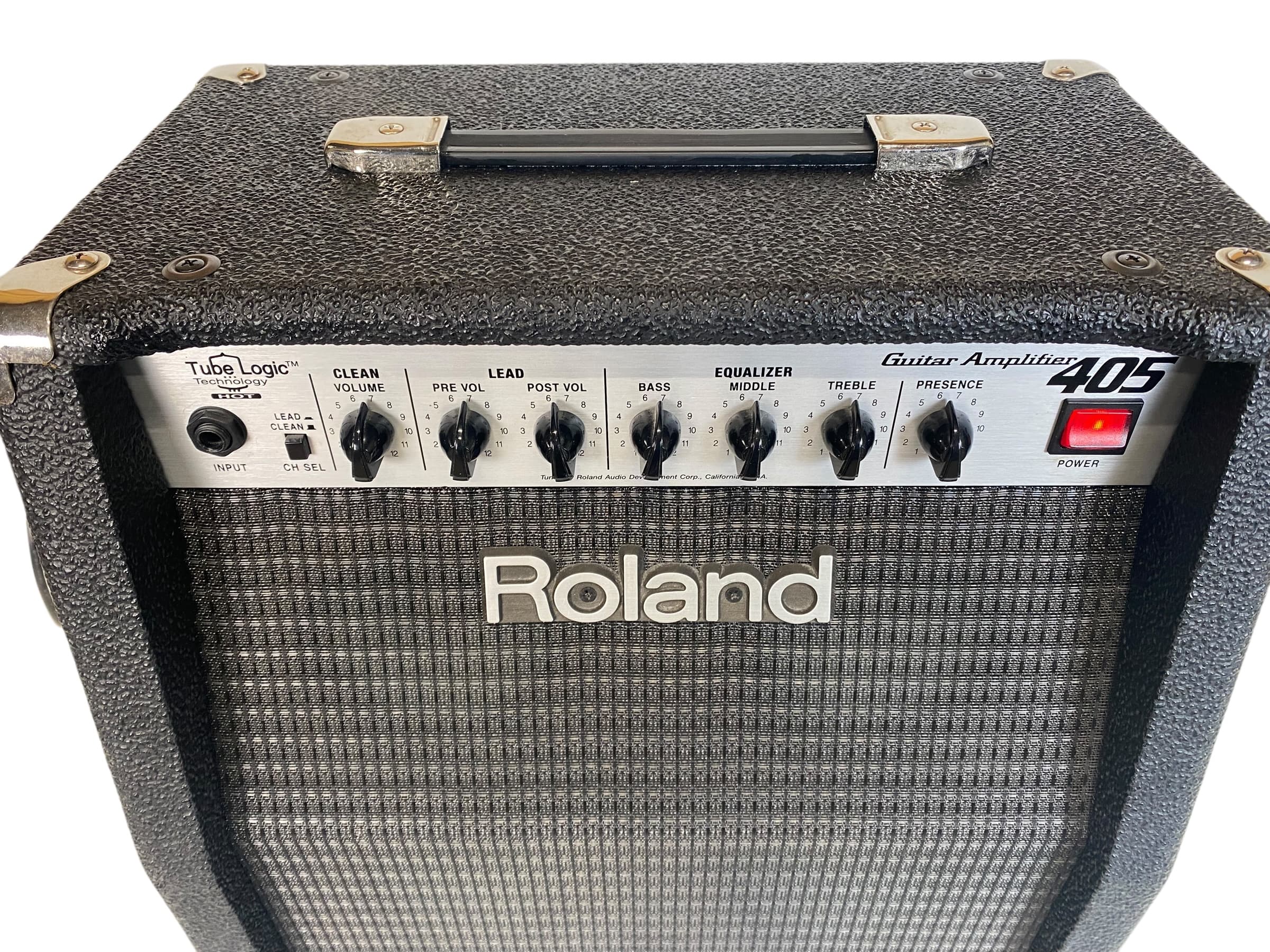

CONTROLS:
Channel Select Switch
Clean Channel Volume
Lead Channel Pre Volume
Post Volume
Equalizer (Bass, Middle, Treble)
Master Presence
Power Switch (w / Indicator)

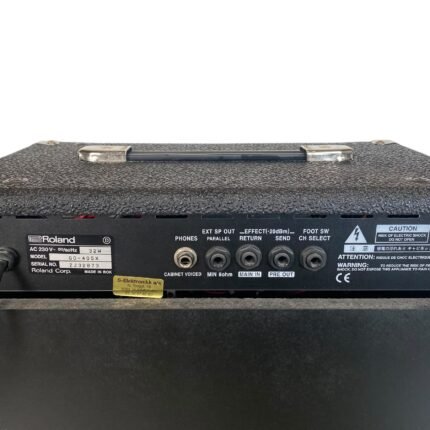

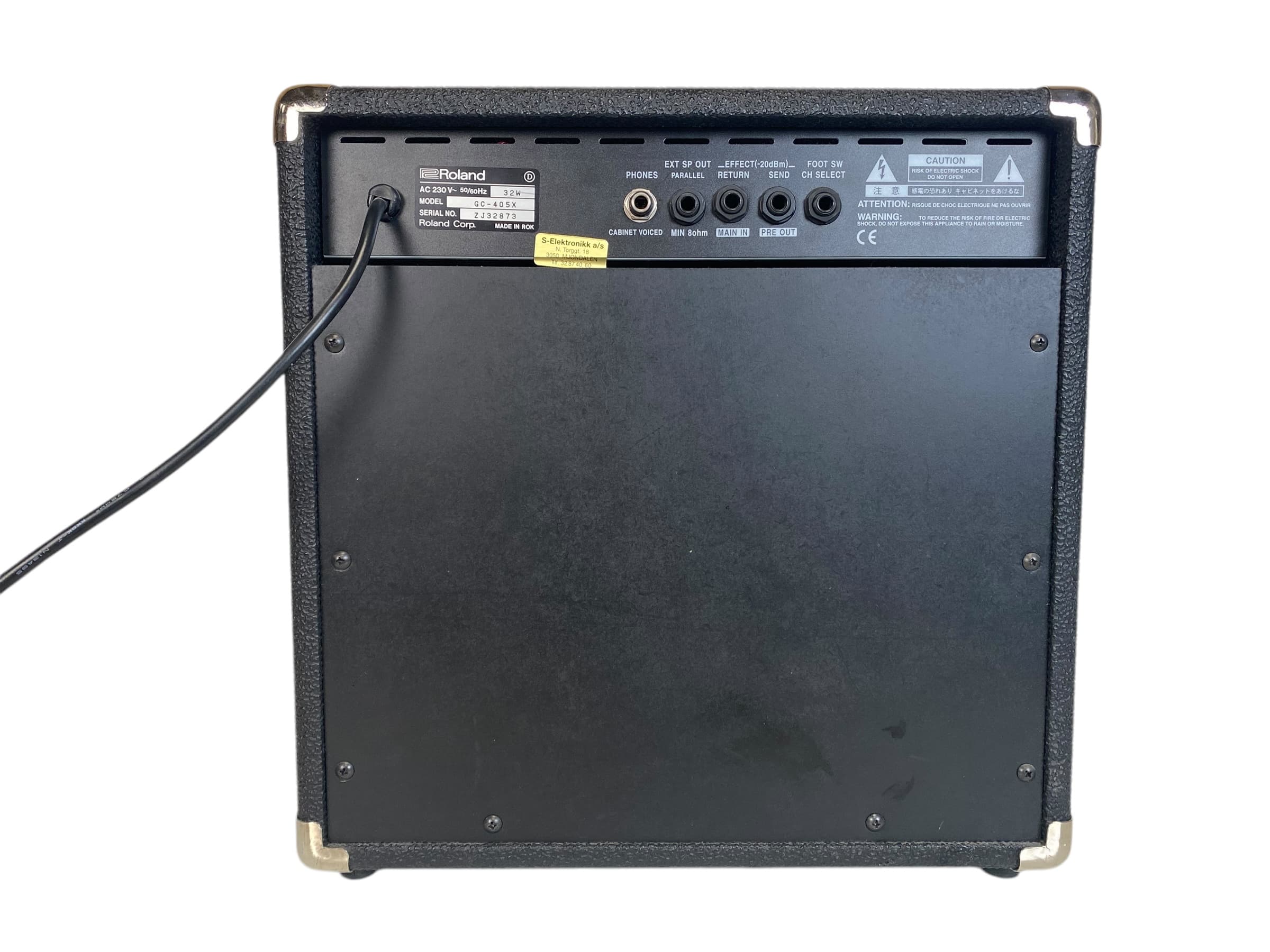

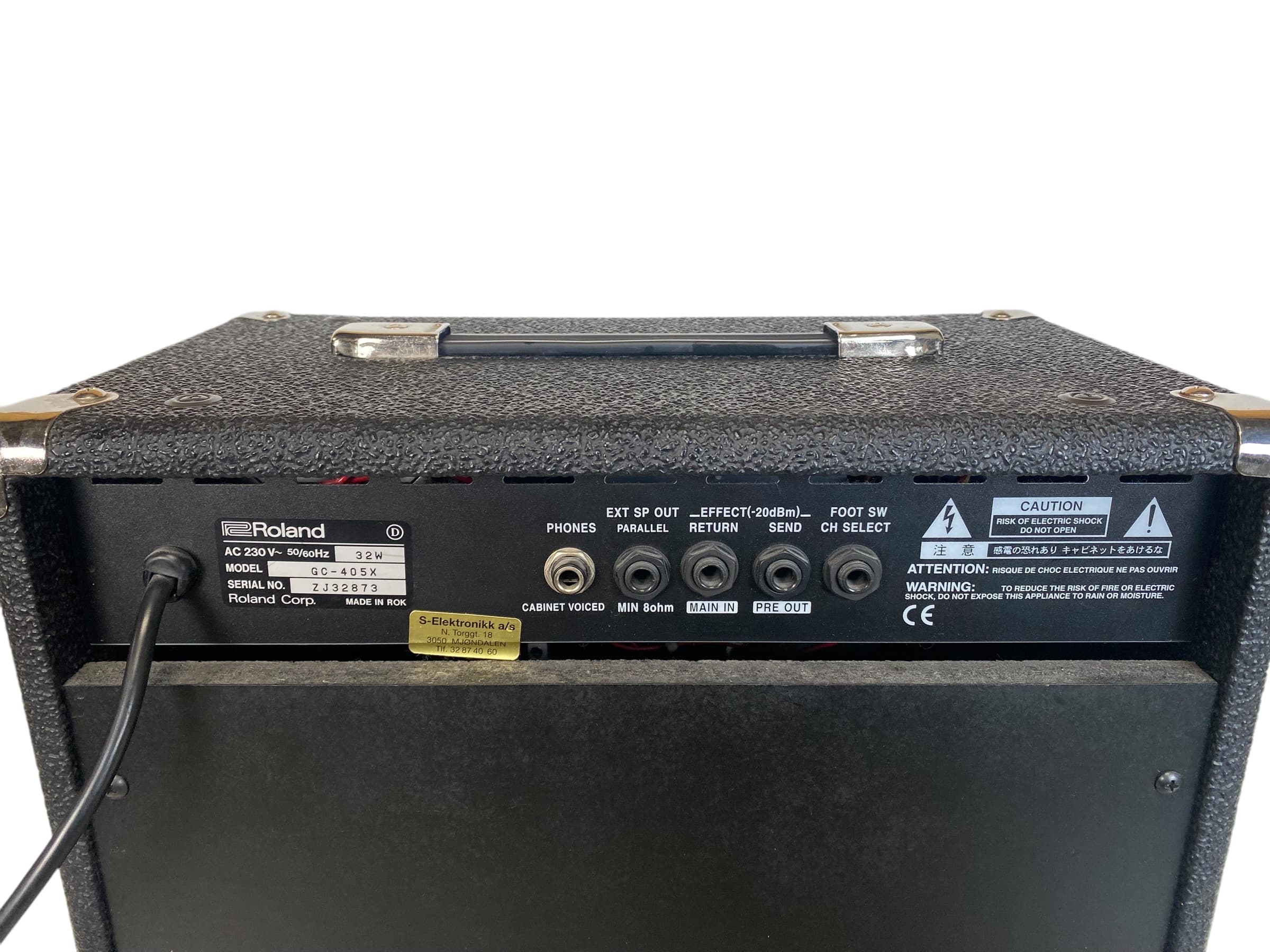

CONNECTORS:
Input Jack
Foot Switch Jack (Channel Select)
Effect Send Jack / Pre Out Jack
Effect Return Jack / Main In Jack
External Speaker Jack
Phones Jack

POWER SUPPLY:
AC 117 V, 230 V or 240 V

POWER CONSUMPTION:
22 W

DIMENSIONS:
390 (W) x 260 (D) x 405 (H) mm
15 – 3 / 8 (W) x 10 – 1 / 4 (D) x 16 (H) inches

WEIGHT:
12.5 kg / 27 lbs 9 oz

SPEAKER BOX:
Speakers: 12 cm (5 inches) x 4
Impedance: 8 ohm
Connectors: Input Jack
Dimensions: 390 (W) x 10 – 1 / 4 (D) x 360 (H) mm
15 – 3 / 8 (W) x 10 – 1 / 4 (D) x 14 – 1 / 8 (H) inches
Weight: 8.3 kg / 18 lbs 5 oz
